In modern manufacturing, joining threaded fasteners to sheet metal is no longer a manual or inconsistent process. A nut welder plays a critical role in delivering high-strength, repeatable, and production-ready threaded joints used across automotive, appliances, HVAC systems, electrical enclosures, and heavy industrial fabrication.

For OEMs, automation integrators, and production engineers, selecting the right nut welding solution directly impacts product durability, cycle time, and assembly efficiency. As global demand for lightweight yet strong assemblies increases, nut welding has become a cornerstone of advanced resistance welding systems.

What Is a Nut Welder?

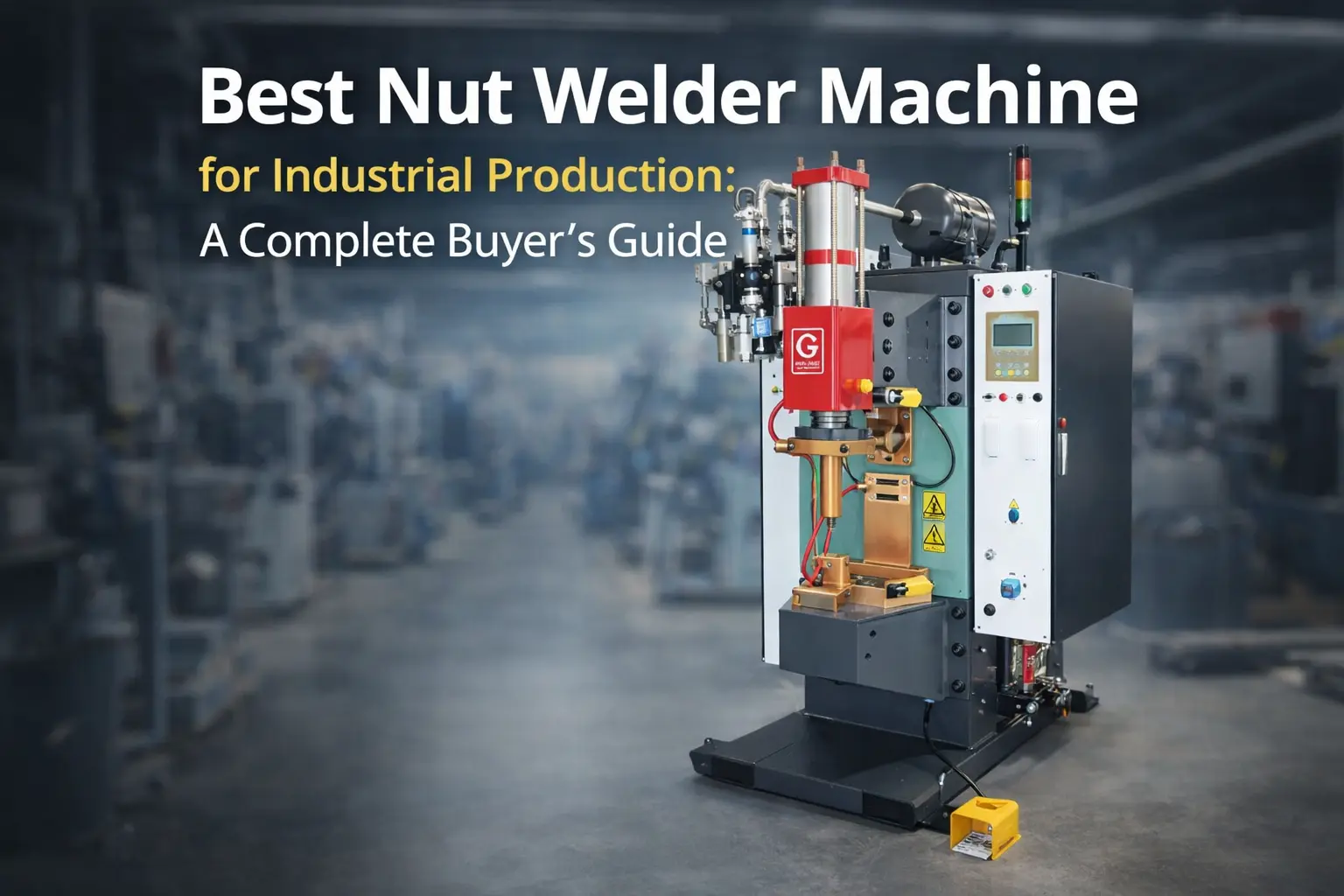

A nut welder is a specialized resistance welding machine designed to permanently attach threaded nuts to metal sheets using controlled electrical current, pressure, and heat.

The process is typically based on projection welding, where the nut has engineered projections (or contact points) that concentrate heat during welding. When current passes through these projections under pressure, localized melting occurs, forming a strong metallurgical bond.

Unlike traditional fastening methods (rivets, screws, or adhesives), nut welding creates a permanent, vibration-resistant joint with excellent load-bearing capability.

How Nut Welding Works: The Core Principle

The nut welding process relies on three synchronized parameters:

1. Controlled Electrical Current

High current is passed through the nut and base metal to generate resistance heat at the contact point.

2. Electrode Force

The electrodes apply precise mechanical pressure to ensure proper alignment and fusion.

3. Time & Energy Control

Weld time is carefully regulated to avoid burn-through or weak joints.

When these variables are balanced correctly, the result is a clean, repeatable, high-strength weld nugget suitable for mass production.

Industrial Applications of Nut Welders

Nut welding machines are widely used wherever threaded fastening points must be integrated directly into sheet metal components.

Automotive Manufacturing

Nut welders are essential for:

• Body-in-white assemblies
• Seat frames and brackets
• Engine compartments
• Structural reinforcements

Automotive production demands high-speed automation and zero-defect welding consistency.

Appliance & HVAC Systems

Nut welders are commonly used in:

• Air conditioner housings
• Refrigeration panels
• Washing machine frames
• HVAC ducting systems

These applications require durable fastening points that withstand vibration and long-term thermal cycling.

Electrical & Industrial Equipment

Manufacturers use nut welders in:

• Control panels
• Metal enclosures
• Industrial machinery frames
• Power distribution systems

Sheet Metal Fabrication

Custom fabrication shops use nut welding for fast assembly without drilling or tapping operations.

Types of Nut Welding Machines

Different production environments require different nut welding technologies.

1. AC Nut Welding Machines

Traditional and cost-effective systems suitable for general fabrication tasks.

• Lower investment cost
• Suitable for low-to-medium production
• Less precise current control

2. Capacitor Discharge (CD) Nut Welders

Designed for fast, low-heat welding cycles.

• Extremely short weld time
• Minimal heat distortion
• Ideal for thin sheet metals

3. MFDC Nut Welding Machines (Industry Standard)

Medium Frequency Direct Current (MFDC) systems are widely used in modern factories.

• Stable and precise current output
• High repeatability
• Reduced spatter and deformation
• Ideal for automated production lines

MFDC technology is often preferred in high-end automotive and OEM manufacturing due to its process stability.

4. Automated & Robotic Nut Welders

Advanced systems integrate:

• Robotic arms
• Automatic nut feeding
• Inline quality monitoring

These systems are designed for high-volume smart factories (Industry 4.0 environments) where speed and consistency are critical.

Nut Welding vs Traditional Fastening Methods

Nut welding eliminates secondary operations like tapping, drilling, or threading—significantly improving production efficiency.

Key Advantages of Using a Nut Welder

1. High Production Efficiency

Nut welders can complete a weld cycle in milliseconds, making them ideal for automated production lines.

2. Strong and Reliable Joints

The weld forms a permanent bond that resists vibration, torque, and mechanical stress.

3. Reduced Manufacturing Cost

Eliminates additional hardware and machining steps such as tapping or riveting.

4. Automation Ready

Modern nut welding systems integrate easily with robotic handling and smart factory systems.

5. Consistent Quality Control

Advanced systems include real-time monitoring to ensure every weld meets quality standards.

Common Nut Welding Defects and Their Prevention

Even in advanced systems, improper setup can lead to welding defects:

• Weak welds → insufficient current or force
• Burn-through → excessive heat input
• Misalignment → poor fixture design
• Spatter formation → unstable current delivery

Using MFDC-based nut welding machines with precise control systems significantly reduces these issues and ensures repeatable quality.

Why Manufacturers Choose Heron Welder

As a global manufacturer of resistance welding systems, Heron Welder delivers advanced nut welding solutions designed for industrial-scale production.

Heron systems are engineered with:

• MFDC resistance welding technology
• High-precision force control systems
• Automated nut feeding integration
• Custom tooling for complex components
• Smart monitoring and process control

From automotive OEMs to appliance manufacturers, Heron provides end-to-end nut welding automation solutions that improve productivity and reduce production variability.

Best Practices for Nut Welding Operations

To maximize weld quality and equipment life:

• Maintain clean, oxide-free surfaces
• Ensure correct electrode alignment
• Use proper projection nut design
• Optimize current and weld time settings
• Regularly inspect electrode wear
• Implement preventive maintenance schedules

Proper setup and calibration are essential for achieving consistent industrial-grade results.

FAQs About Nut Welder Machines

1. What materials can be used in nut welding?

Nut welding is commonly used with low-carbon steel, stainless steel, and aluminum (depending on machine type and parameters).

2. Is nut welding suitable for automation?

Yes. Modern nut welders are fully compatible with robotic arms and automated production lines, especially MFDC and servo-controlled systems.

3. What industries use nut welders the most?

Automotive, HVAC, appliances, electrical enclosures, and industrial machinery manufacturing are the primary users.

4. How strong is a nut weld compared to a bolt connection?

A properly executed nut weld creates a metallurgical bond that is often stronger and more vibration-resistant than mechanical fastening.

5. What is the difference between spot welding and nut welding?

Spot welding joins two sheets together, while nut welding attaches a threaded fastener (nut) to a metal surface.

Conclusion: Build Stronger, Faster, Smarter Production Lines

The nut welder has become an essential machine in modern manufacturing, enabling strong, repeatable, and automation-ready fastener integration. From automotive assembly to industrial equipment production, it significantly improves efficiency, reduces labor dependency, and enhances product reliability.

For manufacturers looking to upgrade production performance, investing in advanced resistance welding systems is no longer optional it is a competitive necessity.
